Mini Liquid Filling Machine

Product Application

Air Conveyor

● Air conveyor is fixed on the floor, with fan installed on the top.

● Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.

● Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.

● All are made of stainless steel SUS 304 /316.

● Rack made by high quality carbon steel welded

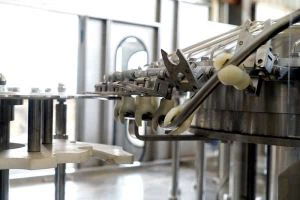

Rinsing Station

The rotary rinsing turret consists of individual bottle neck grippers and spray nozzles to rinse the inside of PET bottles. All contact parts are made of stainless steel or food grade plastic material. The bottle grabbers take the bottles from the inlet starwheel guaranteeing a secure grip. The bottle is turned upside down and centered above a spraying nozzle that directs a stream of rinse water into the bottle. After being rinsed, the bottle is automatically turned over to an upright position.

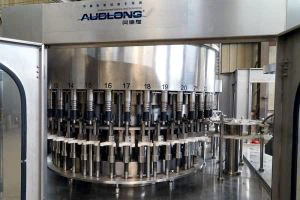

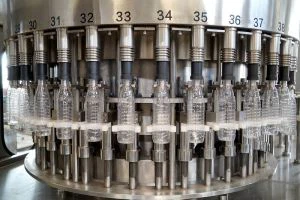

Filling Station

The Filler has gravity style, stainless steel fill heads that are suitable to fill thin flowable liquids in PET bottles, which can be either 2 stage filling nozzles with a fast and slow filling cycle, or single stage nozzles, Filling valves are made of stainless steel with food grade gaskets. The filling valves are secured to allow easy assembly and disassembly. Each valve is internally polished. If the bottle is not present the valve does not deliver any product.

Capping Station

The Capper consists of an internal steel structure with stainless steel casing. Fixed components include the cap hopper, cap feeder and cam actuating capping heads. The cap feeder and all contact parts are made of stainless steel or food grade plastic. The cap feeder guides the caps onto a chute for pick-up. A rotative capping turret with magnetic chuck heads applies plastic screw caps on PET bottles.

Product Conveyor

● Energy saving. High efficient. Adapt to customer factory layout.

● Special lubrication system, keep products clean, health, safety.

● Extended service life.

● Electric eyes design keep whole line running safety and quickly.

● Overload protection mechanism to effectively ensure the safety of the machine.

Who are we?

What we do?

Why trust us?

Before Sales
1. Answer your any question on us with in 24 hours.

2. Supply all information you required.

3. Machines video for reference.

4. Welcome to visit factory.

After Sales

1. Update production progress each week.

2. Sending machines pictures on production.

3. Machines testing running over 8 hours, and sending testing videos.

4. Engineer arranged to install machines.

5. Spare Parts provided.
